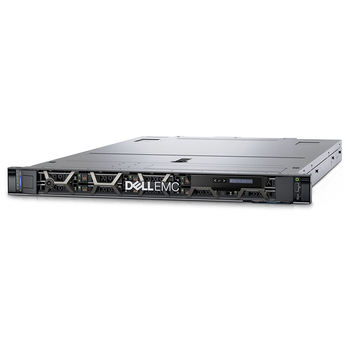

Dell EMC 15G PowerEdge R650xs - 8 Bay 2.5 Inch Small Form Factor - 1U Server - Configure to Order

Dell EMC PowerEdge R650xs – 8 Bay 2.5″ Small Form Factor 1U Server - Configure to Order

Purpose-built performance in a compact 1U chassis. The Dell EMC PowerEdge R650xs with an 8-bay 2.5″ SFF configuration delivers efficient, scalable compute for virtualization, medium-density VDI, and scale-out workloads. Powered by up to two 3rd-Gen Intel® Xeon® Scalable processors (up to 32 cores per socket), with 16 DDR4 slots and PCIe Gen4 expansion, it's engineered for high-density storage and intelligent automation with OpenManage and iDRAC9—balancing performance, capacity, and manageability in space-constrained environments.

Technical Specifications

Form Factor 1U rack server, ~42.8 mm × 482 mm × ~734.95 – 748.79 mm deep

Processors: Up to 2 × 3rd-Gen Intel® Xeon® Scalable CPUs, up to 32 cores each

Memory: 16 DDR4 RDIMM slots – up to 1 TB (Blu–1 TB max), running at up to 3200 MT/s

Drive Bays:

Front: Up to 8 × 2.5″ SAS/SATA/NVMe (HDD or SSD), max ~61.44 TB

Rear: Up to 2 × 2.5″ SAS/SATA/NVMe, max ~15.36 TB

Storage Controllers:

Internal PERC H345/H355/H745/H755/H755N, HBA355i, S150; External PERC H840, HBA355e; Boot via IDSDM or BOSS (2 × M.2 RAID), USB

Power Supplies:

Hot-swap redundant: 600 W Platinum / 800 W Platinum / 1100 W Titanium / 1400 W Platinum (Mixed-mode AC/DC)

Cooling & Fans:

Air-cooled with up to seven fans; options: Standard, SLVR, GOLD performance tiers

Management:

iDRAC9, iDRAC Service Module, iDRAC Direct, Quick Sync 2 wireless, with OpenManage suite (Enterprise, Power Manager, SupportAssist, Update Manager)

Security:

Includes Secure Boot, Silicon Root of Trust, etc., through iDRAC9 platform

SKU:

DELLEMC-R650XS-8SFF-CTO

UPC:

Condition:

Refurbished
