A compact dual-socket enterprise server engineered for scalable compute, virtualization, cloud infrastructure and data-intensive workloads. Configure the PowerEdge R650xs with the processors, memory, storage and networking your environment requires.

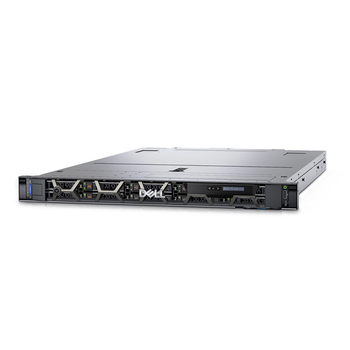

The Dell EMC PowerEdge R650xs is a 15th-generation 1U rack server designed to deliver a strong balance of enterprise performance, storage flexibility and deployment value for scale-out environments.
Supporting up to two 3rd Generation Intel Xeon Scalable processors, the R650xs provides the compute resources needed for virtualization, business applications, cloud services, databases, software-defined infrastructure and other demanding enterprise workloads.
This configuration features a 10-bay 2.5-inch Small Form Factor front drive architecture, providing a versatile foundation for SAS, SATA and supported NVMe storage configurations depending on the selected backplane, controller and system configuration.
Configure up to two 3rd Generation Intel Xeon Scalable processors with support for up to 32 cores per socket.
Sixteen DDR4 DIMM slots support registered ECC memory with speeds up to 3200 MT/s and a platform maximum of up to 1TB.
High-density front storage architecture with support for compatible SAS, SATA and NVMe HDD/SSD configurations.
PCIe Gen4 expansion provides increased bandwidth for compatible network adapters, storage controllers and other enterprise PCIe devices.
OCP 3.0 network adapter support provides flexible options for high-speed Ethernet connectivity without consuming conventional PCIe expansion capacity.
Deliver substantial compute and storage capability while using only one rack unit of valuable data-center space.
Configure your Dell EMC PowerEdge R650xs with the processor, memory, storage, RAID and networking options appropriate for your environment. Configure-to-order systems allow you to purchase the resources you need without paying for unnecessary hardware.
The dual-socket R650xs supports up to two 3rd Generation Intel Xeon Scalable processors, enabling configurations optimized for core count, clock speed, memory bandwidth and workload requirements.
Sixteen DIMM slots provide configurable enterprise memory capacity with registered ECC DDR4 memory and supported speeds up to 3200 MT/s.
The 10-bay PowerEdge R650xs supports up to ten 2.5-inch drives, providing high storage density within a compact 1U chassis.
Depending on the installed backplane, cabling and storage controller configuration, the platform supports compatible SAS, SATA and NVMe HDD/SSD technologies. This flexibility allows the system to be configured for capacity, transactional performance, low-latency NVMe storage or a workload-specific balance of performance and cost.
The PowerEdge R650xs supports multiple Dell PERC and HBA storage-controller options, allowing the server to be configured around traditional hardware RAID, direct-attached storage requirements or supported NVMe architectures.
High-bandwidth PCIe Gen4 expansion supports compatible storage, networking and other enterprise adapters.
OCP 3.0 provides a dedicated architecture for compatible high-speed Ethernet network adapters.
The dense 1U platform makes the R650xs well suited for clustered, virtualized and scale-out deployments.
Dell iDRAC9 provides out-of-band server management capabilities for monitoring system health, reviewing hardware events, configuring firmware and managing the server remotely. Available functionality depends on the installed iDRAC license and configuration.
GENERATION: |
15th Generation |
MODEL: |
PowerEdge R650xs |
FORM FACTOR: |
1U Rack Mount |
SUPPORTED PROCESSOR(S): |
Xeon Bronze |
SUPPORTED PROCESSOR(S): |
Xeon Silver |
SUPPORTED PROCESSOR(S): |
Xeon Gold |
SUPPORTED PROCESSOR(S): |
Xeon Platinum |
DRIVE BAYS: |
Up to 10x 2.5 Inch 12Gb/s SAS/SATA Drives |
SUPPORTED MEMORY: |
DDR4-2666MHz |
SUPPORTED MEMORY: |
DDR4-2933MHz |
SUPPORTED MEMORY: |
DDR4-3200MHz |
